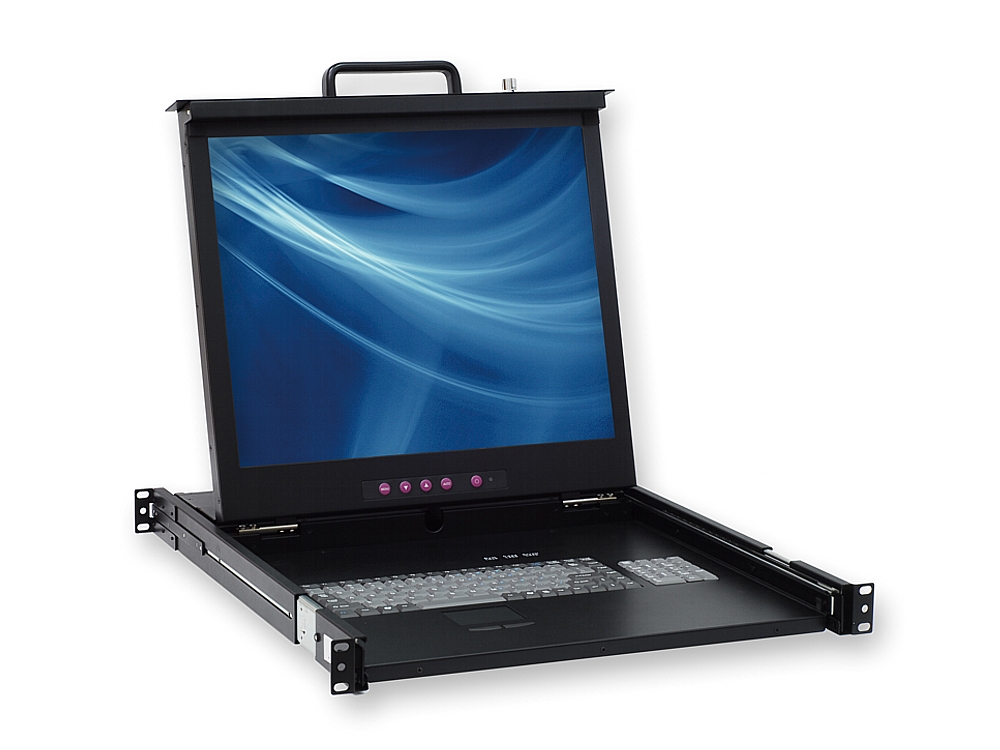

AT-CS19
Features :
Single Rail easy to install and use
Support 17 various keyboard languages
Bright Active Matrix TFT Display
OSD function (On Screen
Display) for LCD display
Durable keyboards
Panel protected by tempered glass
Support USB interface
(optional)
Audio Function (optional)
DC power (optional)
Support DVI (optional)
|
|
Description
Display Size : 19" SXGA
Panel Resolution : 1280 x 1024
Display Color : 16.7M Colors (6-bit with FRC)
Brightness : 250 cd/m²
Contrast Ratio : 500:1
Pixel Pitch : 0.098 mm x 0.294 mm
Viewing Angle : L/R 140°, U/D 140°
OSD Control : Yes
Keyboard : PS/2 keyboard with touch pad
Key Number : 106
Language : 17
Current Consumption : 25 W, 21.05 W for Panel
Connection : PC Port / Daisy Chain Connectors:1 x VGA HDDB 15-pin, 2 x PS
|
KVM : optional 8port or 16port PS/2 KVM
Key Lock : Yes
Power Connection : 100 ~ 240 VAC input
Other Features : Four Lamps for Backlight, optional with Front USB interface
Product Application : certificates: CE / FCC, UL / CUL / C-Tick
Optional Accessories : Front USB, Touchscreen, DVI interface, DC power
|
|
| Additional Information
|
Packaging Information
Carton Width : 570 mm
Carton Height : 210 mm
Carton Depth : 720 ~ 830 mm
Width : 448 mm
Height : 44 mm
Depth : 532 ~ 642 mm
Net Weight : 12.5 ~ 14. kgs
Gross Weight : 19.5 ~ 22 kgs
Carton : 1 pcs
|
|
|
|
|
