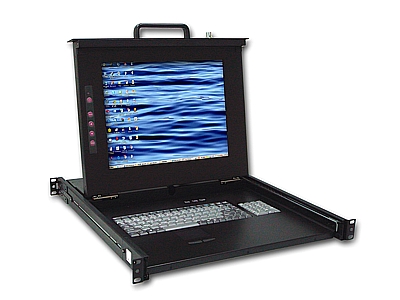

AT-CMS15
Features :
Easy to install, single rail design.
• 15" LCD panel for option
• Support 17 various keyboard languages (increasing)
• Bright Active TFT display
• OSD function for LCD display and KVM switch
• Durable keyboard with touchpad
• Panel protected by tempered glass
• Integration with more than 17 models of KVM switches
• Touch panel and Sun keys (optional)
• With our fully modular IP & CAT5 modules, our customers can create 15 models of KVM Switch from 5 basic models
|
|
Description
Construction : Heavy duty steel materials
Display Size : 15" Active Matrix TFT LCD
Panel Resolution : 1024 x 768
Display Color : 16M Colors (6-bit with FRC)
Brightness : 250 cd/m²
Contrast Ratio : 400 : 1
Pixel Pitch : 0.297 mm x 0.297 mm
Viewing Angle : Right-Left view 130°(Typ) Up-Down View 100°(Typ)
OSD Control : Yes
Keyboard : 106 key PS/2 keyboard with touch pad
Language : 17
Current Consumption : 16W, 10.41W for Panel
Connection : Support PS/2 and USB
|
KVM : optional 8 or 16 port, easily integrateable
KVM cable : 1x1.8m KVM cable (HDDB-15/VGA+PS/2x 2)
Key Lock : Yes
Power Connection : 100 ~ 240 VAC input
Other Features : Dual Lamps for Back Light
Product Application : certificates: CE / FCC, UL / CUL / C-Tick, GOST
Optional Accessories : KVM
|
|
| Additional Information
|
Packaging Information
Carton Width : 606 mm
Carton Height : 551,5 mm
Carton Depth : 230 mm
Width : 470.1 mm
Height : 447.5 mm
Depth : 44 mm
Net Weight : 12.0 kgs
Gross Weight : 19.5 kgs
|
